Product Introduction

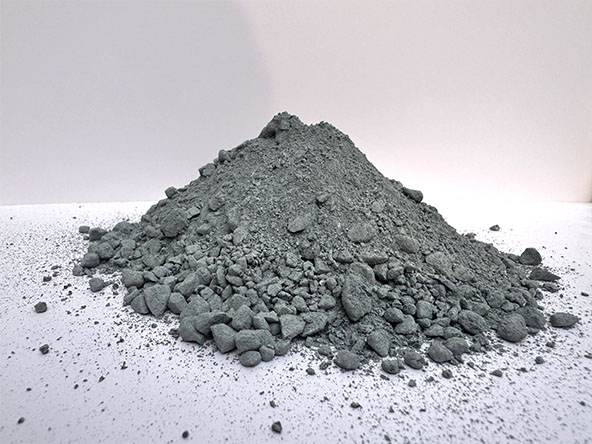

Corundum silicon carbide castable are made of fused brown corundum or white corundum and silicon carbide as the main raw materials, added with alumina powder, kyanite, explosion-proof fiber, and combining with white cement.
Product Advantage
Strong anti-scouring ability
The characteristics of corundum silicon carbide castables are: good resistance to slag erosion, strong thermal shock stability and strong anti-scouring ability.
High thermal conductivity
The silicon carbide in the corundum silicon carbide castable has high thermal conductivity and small thermal expansion coefficient. Silicon carbide plays the role of wear resistance, thermal shock resistance and skeleton at high temperature.
Extremely strong wear resistance
The corundum silicon carbide castable made by combining corundum and silicon carbide has extremely strong wear resistance and can resist corrosion from acidic and alkaline materials.
Product Data
| Items | Corundum silicon carbide castable | |
| Al2O3 % ≥ | 80 | |
| SiC ≥ | 12 | |
| Bulk density g/cm3 | 110℃*24h≥ | 2.85 |
| Modulus of rupture Mpa | 110℃*24h≥ | 9 |
| 1500℃*3h≥ | 15 | |
| Cold crushing strength Mpa | 110℃*24h≥ | 50 |
| 1500℃*3h≥ | 95 | |
| Permanent linear change % | 1500℃*3h≥ | 0~+1.0 |
Application Field
It is mainly used in various high-temperature industrial kilns and heat treatment equipment, such as steel, non-ferrous metals, glass, ceramics, chemical industry and other industries. In these fields, corundum silicon carbide castables are mainly used for lining and insulation of furnace, furnace bottom, furnace wall, hot air duct and other parts to improve the long-term stable operation and production efficiency of the equipment.
